| Display |
3¨ú digits LCD, max reading 3400 |
| Range selection |
Autoranging and manual range lock |
| Overrange indication |
OL |
| Polarity indication |
- is displayed; + is implied |
| Battery warning |
 displayed when <1.25 V ¡¾0.1 V |
| Sampling rate |
2/sec display. 20/sec bargraph |
| Environment |
Indoor operation, 2000 m (6561 ft) max |
| Temperature/Humidity |
Operation: 0 ¨¬C to 40 ¨¬C (32 ¨¬F to 104 ¨¬F), <70 % RH non-condensing
Storage: -20 ¨¬C to 60 ¨¬C (-4 ¨¬F to 140 ¨¬F), <80 % RH non-condensing |
| Battery type |
Two 1.5 V (L1154F or LR-44) |
| Battery life |
70 hours continuous operation |
| Continuity test |
Beeper alert |
| Auto-OFF |
After 10 minutes of non-use |
| Dimensions (H x W x D) |
130 x 77 x 18 mm (5.1" x 3.1" x 0.6") |
Weight
(including battery) |
110 g (3.9 oz) including case |
| Maximum input, all functions/ranges |
600 VDC or AC rms |
| DC Voltage |
| Ranges |
340 mV, 3.4, 34, 340, 600 V |
| Resolution |
100 ¥ìV in 340 mV rg |
| Accuracy |
¡¾2.0 % rdg. + 2 dgts (exc. 3.4 V rng: ¡¾1.0 % rdg + 2 dgts) |
| Input impedance |
340 mV rng: >100 M¥Ø; 3.4 |
| V rng |
10 M¥Ø;
all other: 9.1 M¥Ø |
| AC Voltage (50~60 Hz) |
| Ranges |
3.4, 34, 340, 600 V |
| Resolution |
1 mV in 3.4 V range |
| Accuracy |
¡¾4.0 % rdg. + 5 dgts |
| Input impedance |
3.4 V rng: 10 M¥Ø all others 9.1 M¥Ø |
| Resistance |
| Ranges |
34 ¥Ø, 3.4, 34, 340 k¥Ø, 3.4, 34 M¥Ø |
| Resolution |
1 00 m¥Ø in 340 ¥Ø rg |
| Accuracy |
340 ¥Ø, 3.4, 34, 340 ¥Ø rgs: ¡¾2.0 % rdg. + 4 dgts;
3.4 M¥Ø rg: ¡¾3.0 % rdg. + 4 dgts;
14 34 M¥Ø rg: ¡¾5.0 % rdg. + 5 dgts |
| Test voltage |
-0.45 Vdc typical (-1.2 Vdc on 340 ¥Ø rng) |
| Diode Test |
| Range |
3.4 V |
| Accuracy |
¡¾3.0 % rdg + 3 dgts |
| Test current |
0.6 mA (Vf = 0.6 V) |
| Continuity Check |
| Range |
340 ¥Ø |
| Indication |
at approx R <35 ¥Ø |
| Test Current |
0.7 mA |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Descripcion

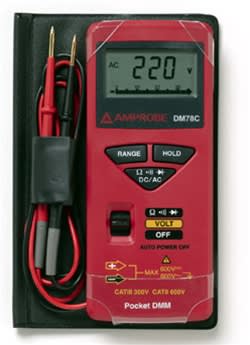

Smallest, go anywhere meter
Data Hold
5 functions/16 ranges
Auto-off saves batteries
Protective case included
3200-count display with analog bargraph
|
|
|
|
|
|
|
|
|
