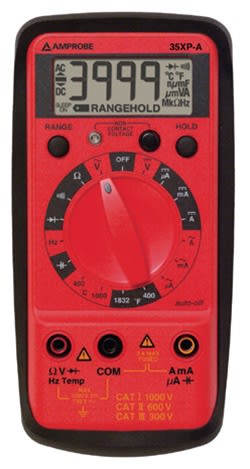

Specifications |
| DC Volts |
Ranges |
400 mV, 4 V, 40 V, 400 V, 1000 V |
| Accuracy |
±(0.5 % rdg + 1 dgt) |
| Resolution |
100 µV |
| Input Impedance |
400 mV: >100 MÙ; 4 V: 10 MÙ; 40 V to 1000 V: 9.1 MÙ |
| Overload Protection |
1000 V dc or 750 V ac rms |
AC Volts
(45 Hz To 500 Hz) |
Ranges |
400 mV (45 Hz to 100 Hz), 4 V, 40 V, 400 V, 750 V |
| Accuracy |
±(1.5 % rdg + 5 dgts) |
| Resolution |
100 µV |
| Input Impedance |
400 mV: >100 MÙ; 4 V: 10 MÙ; 40 V to 1000 V: 9.1 MÙ |
| Overload Protection |
1000 V dc or 750 V ac rms |
| DC Current |
Ranges |
400 µA, 4000 µA, 40 mA, 400 mA, 2 A |
| Accuracy |
400 µA, 4000 µA, 40 mA, 400 mA: ±(1.0 % rdg + 2 dgt)
2 A: ±(2.0 % rdg + 3 dgts) |
| Resolution |
0.1 µA |
| Input Protection |
2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input |
| Burden Voltage |
500 mV max. (2 V max. on 4 mA, 400 mA ranges) |
AC Current
(45 Hz To 500 Hz) |
Ranges |
400 µA, 4000 µA, 40 mA, 400 mA 2 A |
| Accuracy |
400 µA, 4000 µA, 40 mA, 400 mA: ±(1.5 % rdg + 5 dgts)
2 A: ±(2.5 % rdg + 5 dgts) |
| Resolution |
0.1 µA |
| Input Protection |
2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input |
| Burden Voltage |
500 mV max. (2 V max. on 4 mA, 400 mA ranges) |
| Resistance |
Ranges |
400 Ù, 4 kÙ, 40 kÙ, 400 kÙ, 4 MÙ, 40 MÙ |
| Accuracy |
400 Ù, 4 kÙ, 40 kÙ, 400 kÙ, 4 MÙ: ±(1.0 % rdg + 4 dgts)
40 MÙ: ±(2.0 % rdg + 5 dgts) |
| Resolution |
100 mÙ |
| Open Circuit Voltage |
-0.45 V dc typical, (-1.2 V dc on 400Ù range) |
| Overload Protection |
1000 V dc or 750 V ac rms |
| Capacitance |
Ranges |
4 nF, 40 nF, 400 nF, 4 µF
40 uF, 400 uF
4 mF |
| Accuracy |
4 nF, 40 nF, 400 nF, 4 µF: ±(5.0 % rdg + 30 dgts)
40 uF, 400 uF: ±(5.0 % rdg + 5 dgts)
4 mF: ±(5.0 % rdg + 15 dgts) |
| Resolution |
1 pF |
| Test Voltage |
< 1 V |
| Test Frequency |
1.3 Hz on 4 nF to 40 µF ranges, 0.7 Hz on 400 µF, 4 mF ranges |
| Input Protection |
2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input |
| Temperature |
Range
(Accuracy) |
400 °C, 1000 °C, 400 °F, 1832 °F
-20 °C to 10 °C: ±(2.0 % rdg + 4 °C)
10 °C to 200 °C: ±(1.0 % rdg + 3 °C)
200 °C to 1000 °C: ±(3.0 % rdg + 2 °C)
-4 °F to 50 °F: ±(2.0 % rdg + 8 °F)
50 °F to 400 °F: ±(1.0 % rdg + 6 °F)
400 °F to 1832 °F: ±(3.0 % rdg + 4 °F) |
| Resolution |
0.1 °C, 0.1 °F |
| Overload Protection |
1000 V dc or 750 V ac rms |
| Frequency |
Range |
4 k, 40 k, 400 k, 1 M |
| Accuracy |
±(0.1 % rdg + 3 dgts) |
| Resolution |
1 Hz |
| Sensitivity |
10 Hz to 1 MHz: >2.5 V rms |
| Minimum Pulse Width |
> 25 ns |
| Duty Cycle Limits |
> 30 % and < 70 % |
| Overload Protection |
1000 V dc or 750 V ac rms |
| Continuity |
Audible Indication |
Less than 25 ½ |
| Response Time |
100 ms |
| Overload Protection |
1000 VDC or 750 VAC rms |
| Diode Test |
Test Current |
1.2 mA (approximate) |
| Accuracy |
±(1.5 % rdg + 3 dgts) |
| Resolution |
1 mV |
| Open Circuit Voltage |
3.0 dc typical |
| Overload Protection |
1000 V dc or 750 V ac rms |
| Non-Contact Voltage Indicator |
Sense voltage 70 V to 600 V ac beeper chirps and big bright red LED comes on, works on all ranges |
